Genuine Kawasaki 11028-6319 11028-6314 Engine & Carburetor Kit FX751V FX801V

$164.98

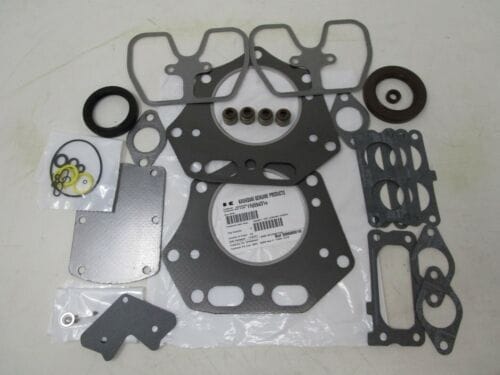

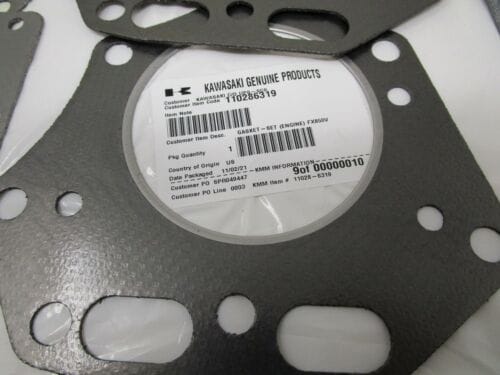

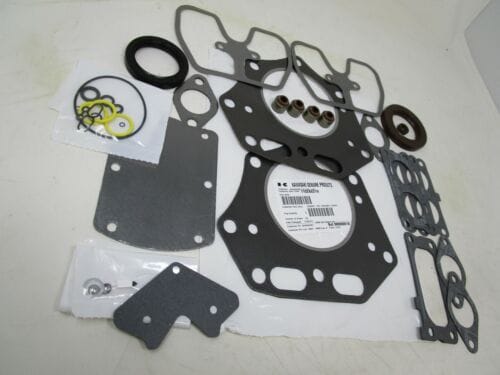

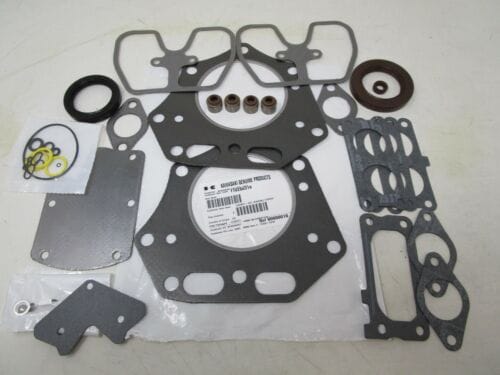

Genuine Kawasaki Engine & Carburetor Kit 11028-6319

Comes with Carburetor Rebuild Kit 11028-6314

Superseded Carb Kit is a 11028-6292

Superseded Engine kit is a 11028-6291

2 / 11004-7025 Gasket (Cylinder head)

2 /211060-7016 Gasket (Muffler)

2 / 11061-0899 Gasket (Rocker Case)

2 / 11061-7070 Gasket (Manifold/Cylinder Head)

1 / 11061-7081 Gasket (Breather)

2 / 670B2011 O-Ring (Crankcase)

3 / 92055-0892 O-Ring (Filler tube and Oil drain)

1 / 92049-7019 Seal-Oil (Governor shaft)

4 / 92049-7020 Seal-Oil (Valve stem IN & EX)

1 / 92049-7024 Seal-Oil (Crankshaft-Flywheel side)

1 / 92049-7026 Seal-Oil (Crankshaft-PTO side)

Included in the Carburetor Kit 11028-6314

1 / 11009-2056 Gasket (Carb. Solenoid)

1 / 11061-7037 Gasket (Carb. Spacer top)

1 / 11061-7038 Gasket (Carb. Float Bowl)

1 / 11061-7039 Gasket (Carb. Slow passage cover)

1 / 11061-7091 Gasket (Intake pipe/Carburetor)

3 / 11061-7092 Gasket (Carb./Insulator/BKT/Manifold)

2 / 92055-7013 O-Ring (Carb. Main jet)

1 / 92055-7016 O-Ring (Carb. Spacer bottom)

1 / 92055-7024 O-Ring (Carb. Spacer top)

1 / 92093-7001 Seal (Carb. Choke shaft)

1 / 16030-7002 Seal (Carb. Throttle shaft)

1 / 16030-7004 Valve (Carb. Float valve)

2 / 92066-7009 Welch Plug

Weight9 oz
Dimensions12 × 10 × 2 in
