Genuine Kawasaki FJ180V-CM09-S Engine Toro 22210 Commercial TurfMaster Exmark

Genuine Kawasaki FJ180V FJ180V-CM09-S Engine 25mm X 80mm or 3 5/32”

Toro 30″ TurfMaster

Exmark ECS180CKA3000

EC21KA

Toro 22210

Superseded part numbers FJ180V-S33, FJ180V-S15 Exmark, FJ180V-M21, FJ180V-M09

This engine will cross over to all TurfMaster that have a Kawasaki FJ180V engine on it.

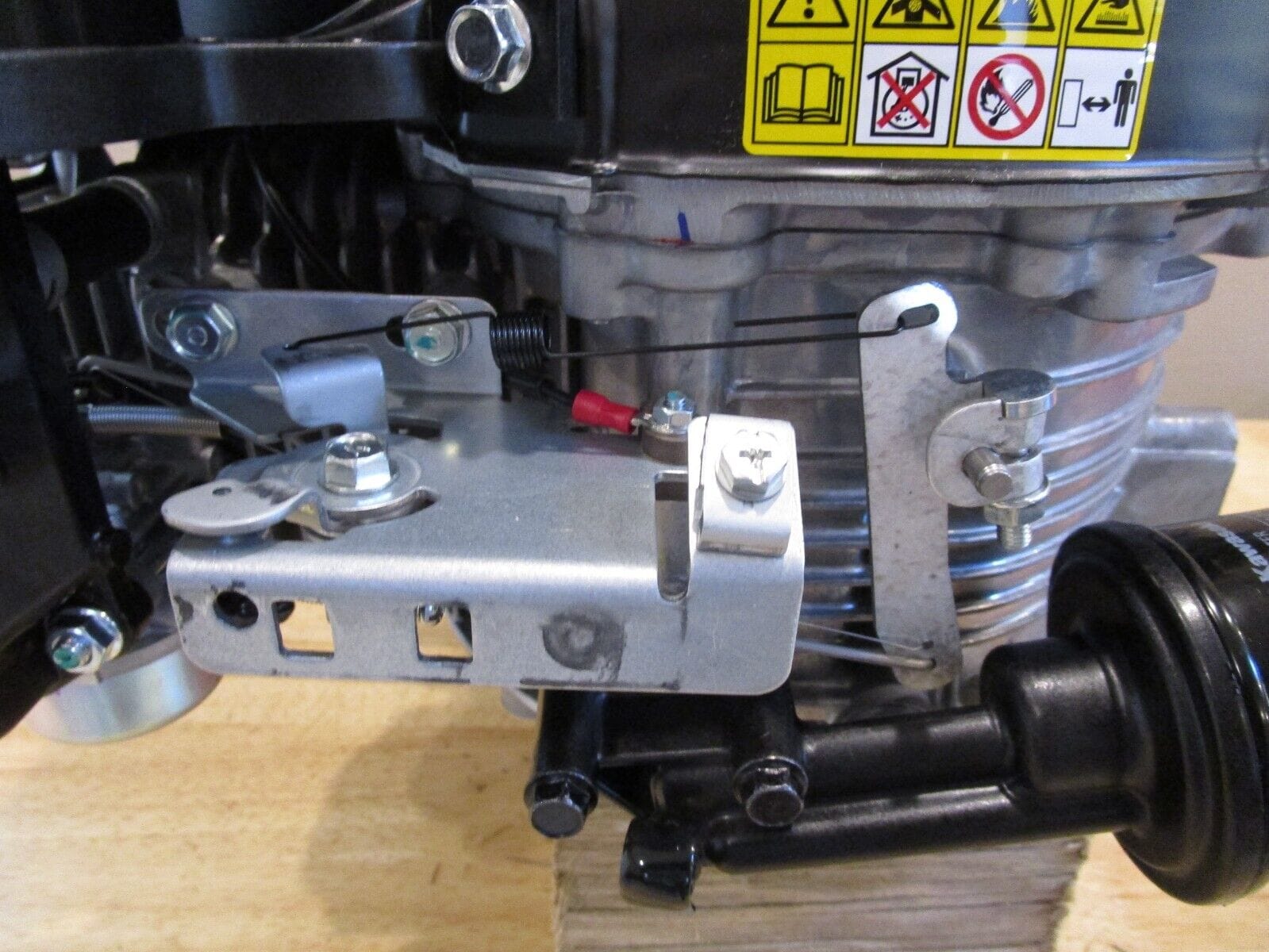

Strait Shaft. No Gas Tank, Oil Filter, Variable throttle, Choke, Blade Brake

Specifications

Approximately 3/16″ Keyway

Bolt down pattern approximately 5 3/8″ Center to Center

Displacement 179 cc (10.9 cu. in.)

Number of Cylinders 1

Bore x Stroke 2.6 x 2.1 in. (65 x 54mm)

Compression Ratio 8:5:1

Oil capacity w/filter 0.6 U.S. qt ( 0.6 liters)

Dry Weight (without muffler) 29.8 lbs (13.5 kg)

The FJ180V engine is an all-purpose, heavy-duty engine that is compact and lightweight.

This will Fit

Exmark Commercial ECS180CKA33000 21″

Toro Turf Master 30″ Model Number 22210

This overhead valve engine is ready to work for you in walk-behind mowers, construction, agricultural, or turf and golf machines

FJ SERIES

Kawasaki FJ Series engines keep emissions low and operator comfort high. Put them to work anywhere from farm field to golf course, construction application to walk-behind mowers. These machines have overhead valve design and a range of power options.
