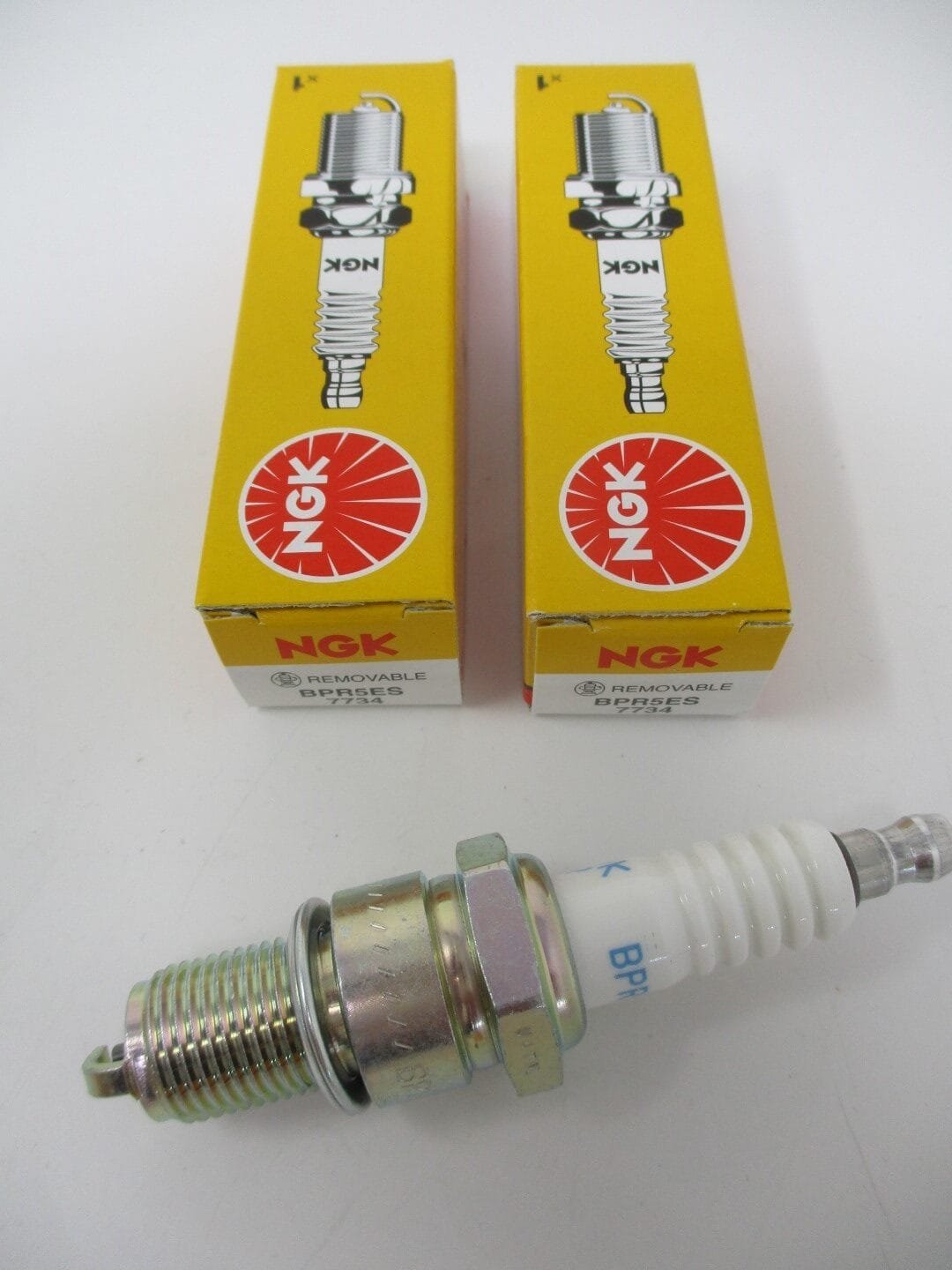

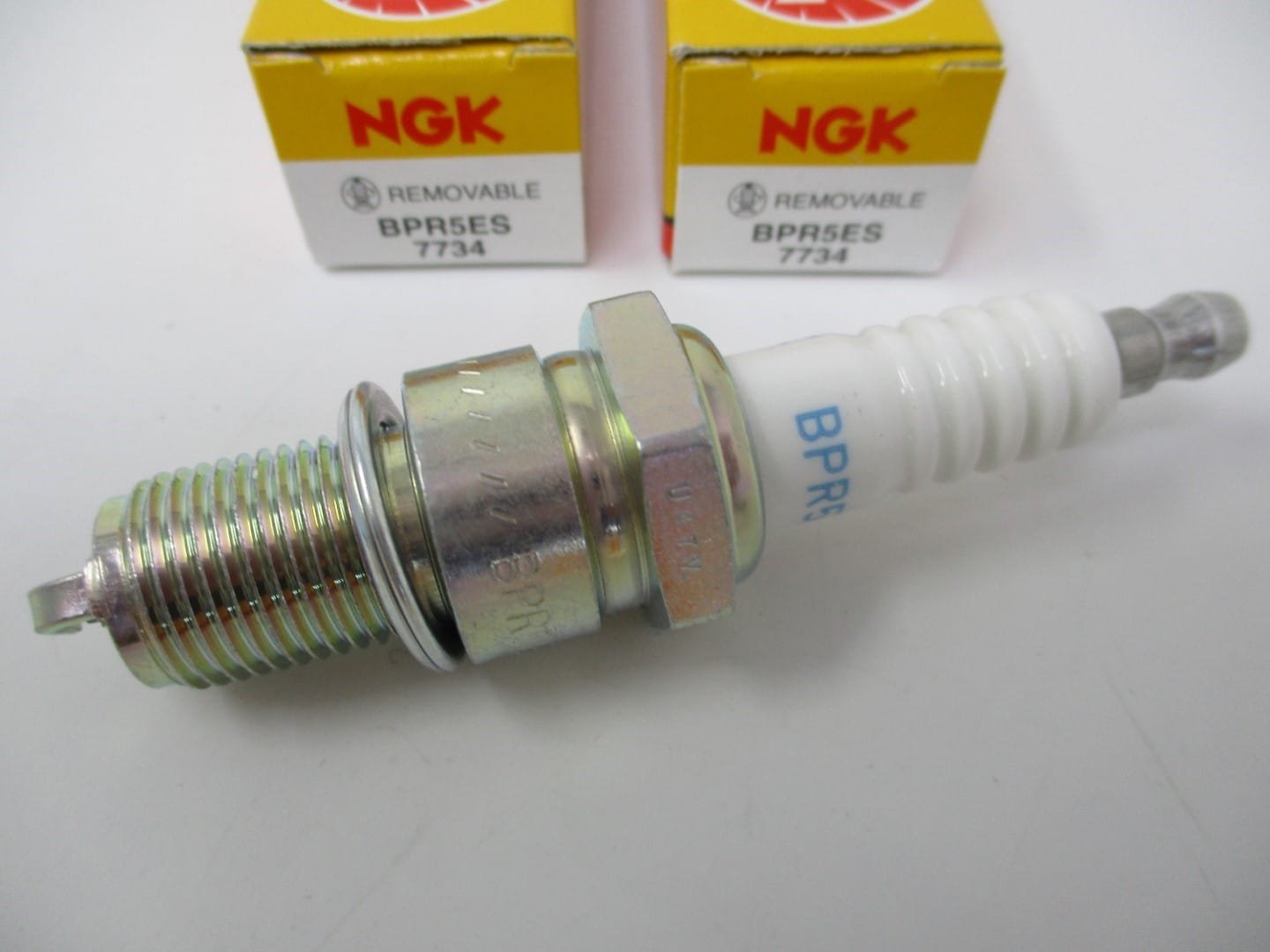

2 Genuine NGK BPR5ES 7734 Spark Plugs (Replaces 7832 BP5ES)
Item Specifics
Spark Plug Set – Resistor Type
Part Number: NGK 7734 / BPR5ES
Supersedes: 7832 BP5ES (Non-Resistor)
Quantity: 2 Plugs
For chainsaw and many others small engines machines. This spark plug fits a lot of small equipment like chippers, chainsaws, snow blowers. NGK standard plugs are constructed for longer life and optimum performance.
Technical Specifications
| Specification | Details |
|---|---|
| Thread Diameter | 14mm |
| Thread Pitch | 1.25mm |
| Seat Type | Gasket |
| Reach | 19mm (¾”) |
| Hex Size / Wrench Diameter | 13/16″ |
| Gap Size | 0.036 in |
| Heat Range | 5 |
| Terminal Type | Removable Nut |
| Tip Configuration | Loose |
| Resistor | Yes (5K Ohm) |
| Type | Standard |
| Shorty Spark Plug | No |
| Ground Configuration | Standard |
| Ground Electrode Quantity | 1 |
| Ground Strap Quantity | 1 |
| Torque Specs | Cast Iron: 18-25 ft lbs | Aluminum: 18-21.6 ft lbs |
Construction Materials
| Component | Material |
|---|---|
| Center Electrode Core | Copper |
| Center Electrode Tip | Nickel |
| Electrode Core | Nickel |
| Electrode Tip | Nickel |
| Ground Electrode Core | Nickel |
| Insulator | 99% Highly Pure Alumina Silicate |
| Plating | 3-Step Trivalent (Silver Chromate & Zinc) |
Product Features
- Triple Gasket-Sealing Process: Virtually eliminates gas leakage past the shell
- High Purity Insulator: 99% highly pure alumina silicate insulator enables longer insulator noses to reduce fouling
- Enhanced Corrosion Resistance: 3-step trivalent-plating process uses silver chromate and zinc
- Copper Core: Provides enhanced spark and heat transfer
- Corrugated Ribs: Help prevent flashover and provide high dielectric strength
- Improved Anti-Fouling: Designed for reliable performance in small engines
We at M&M Products are a stocking distributor for Briggs and Stratton, Kohler and Kawasaki dealer. We not only sell their OEM parts but we also use them on our equipment repairs and rebuilds. If there is something you need and don’t see it on one of our auctions, please email me through [email protected] and I can get it in and create an auction for that item.
We also ship internationally!
