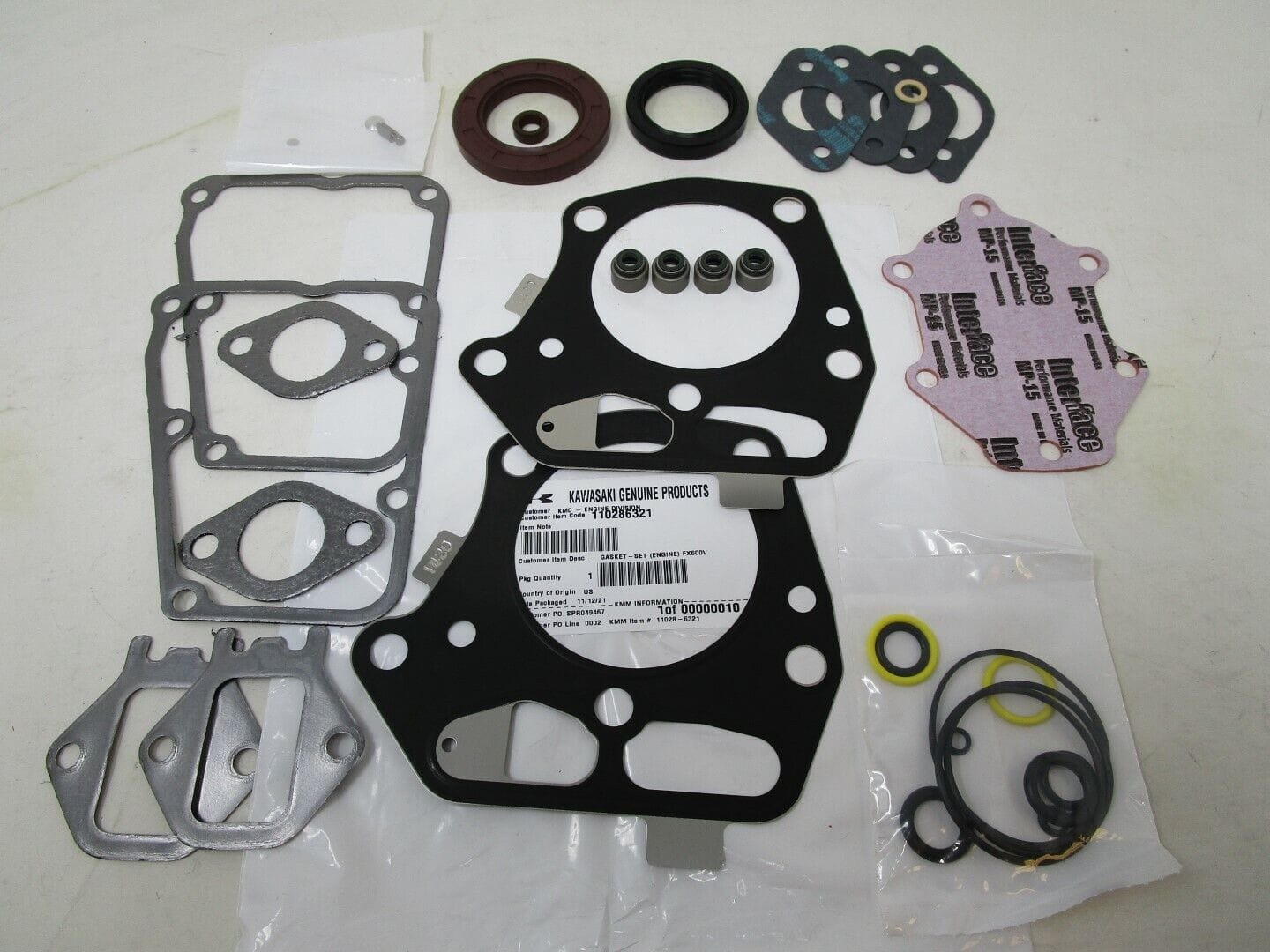

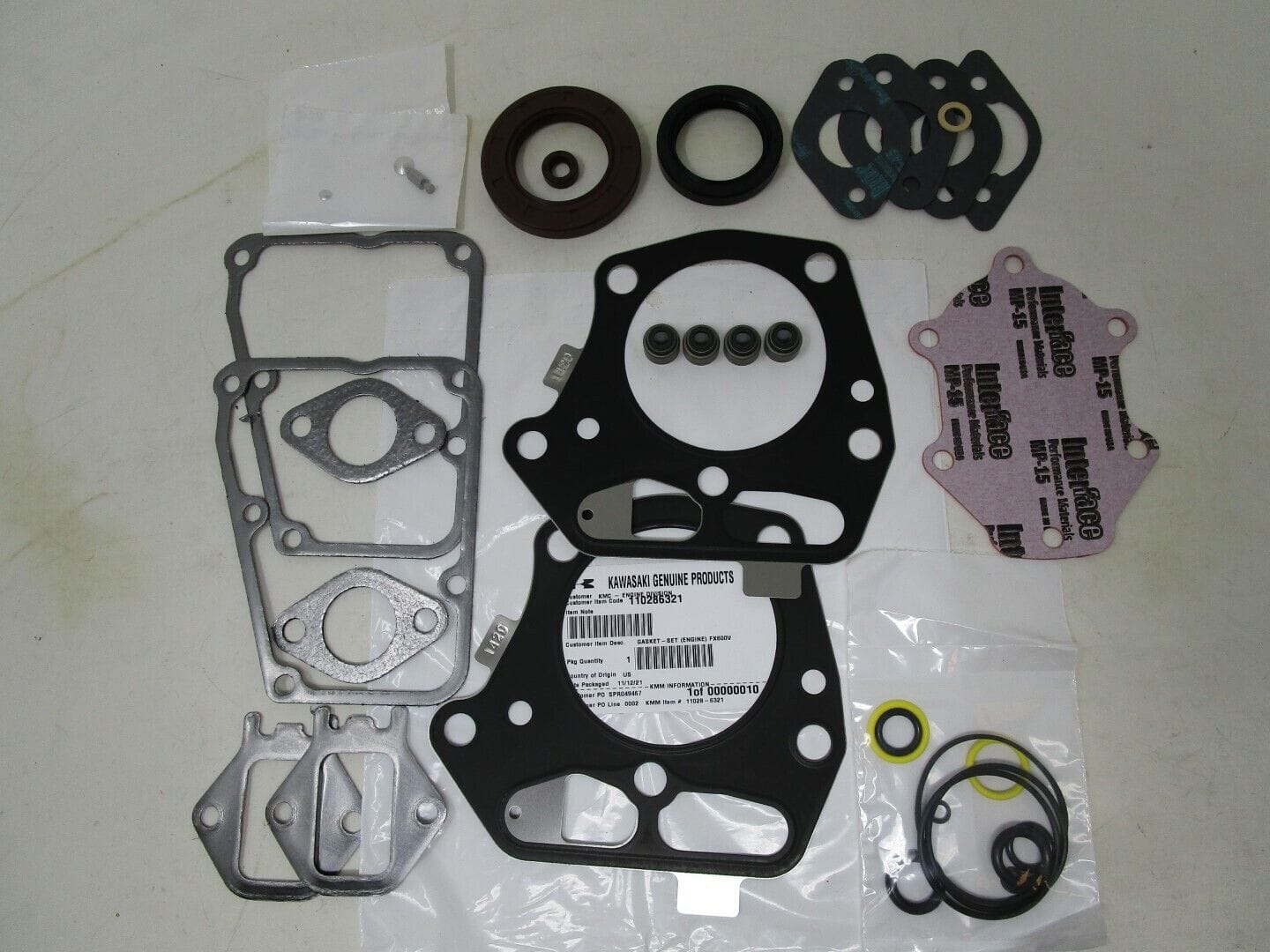

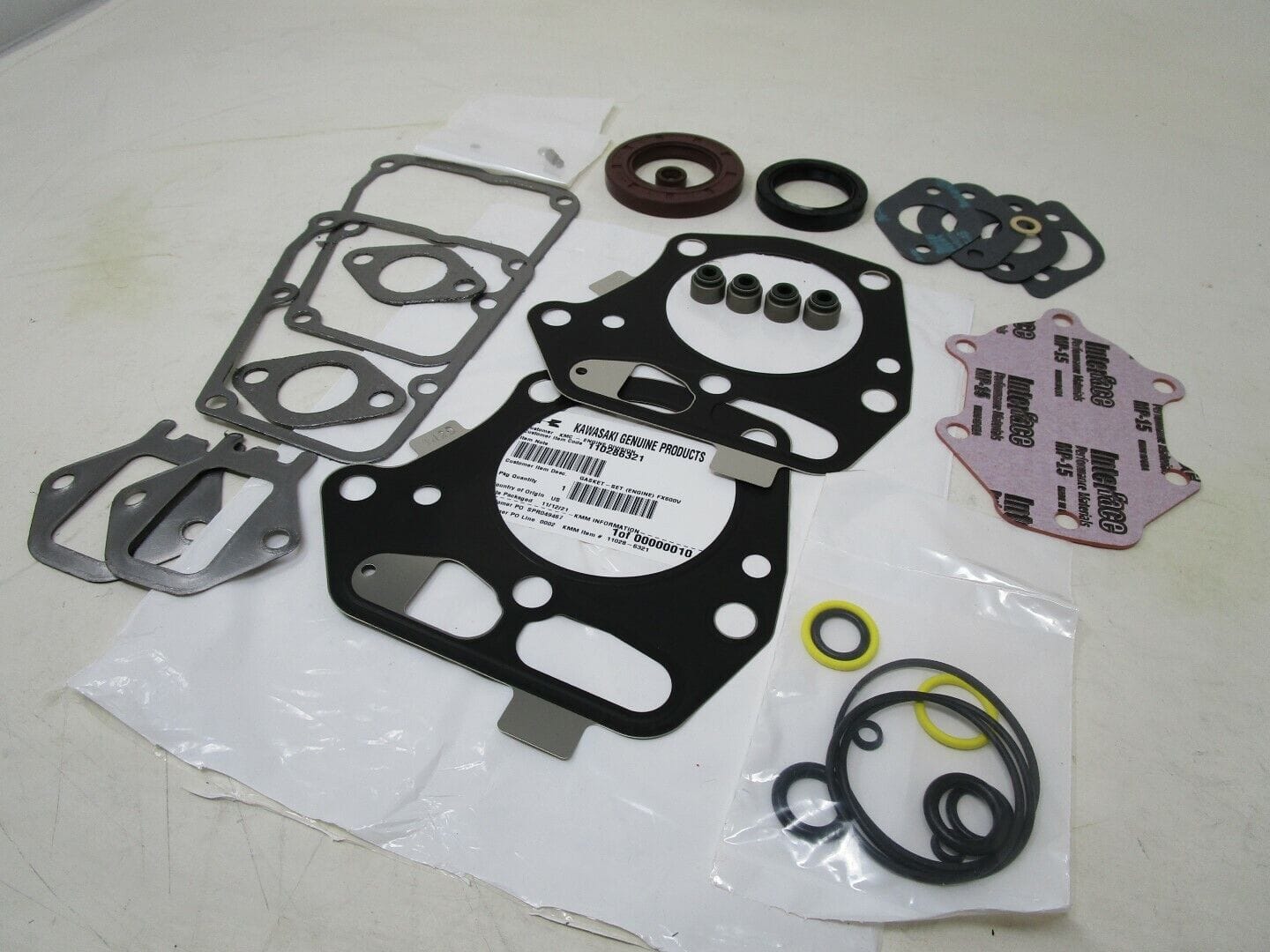

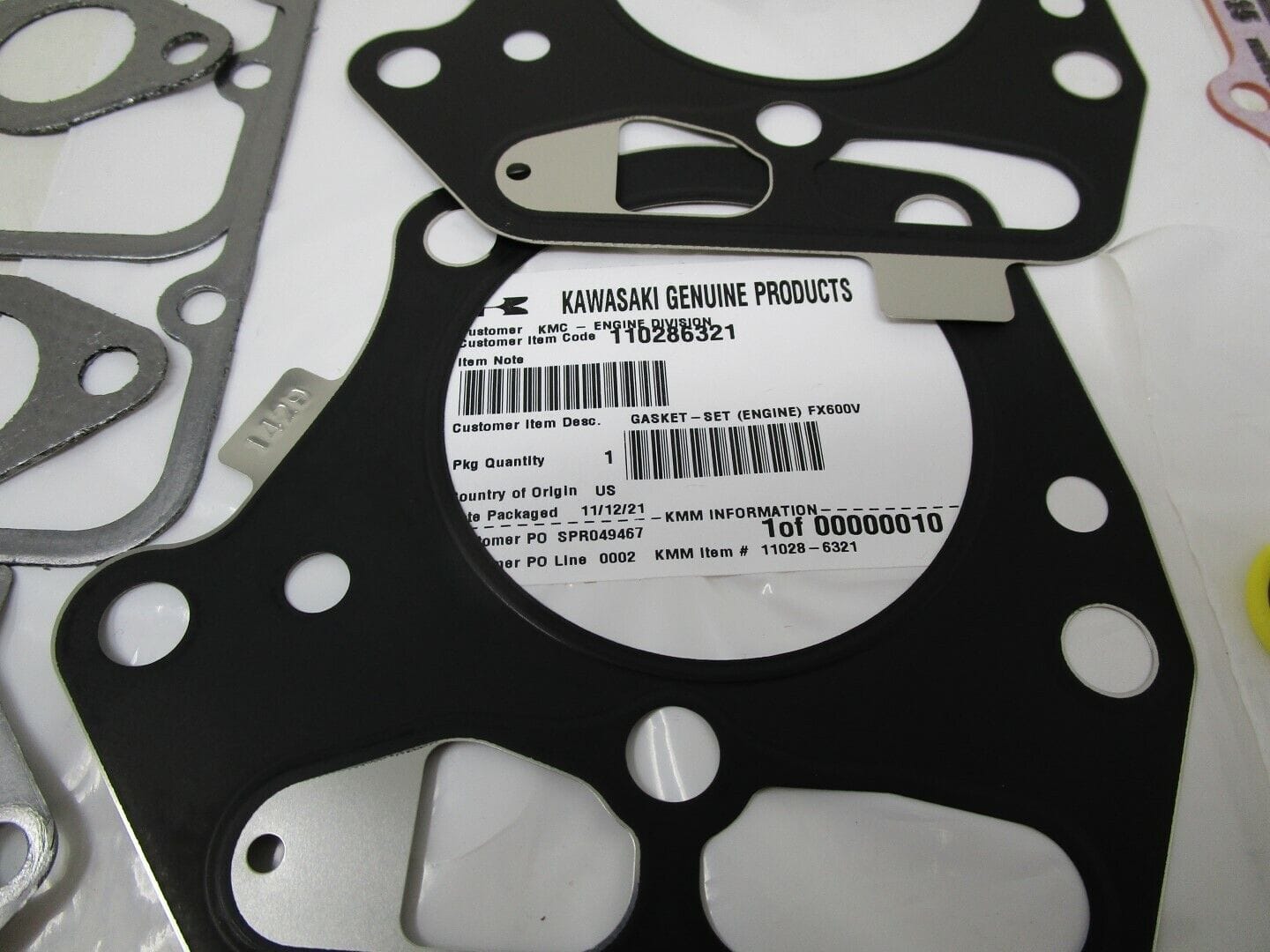

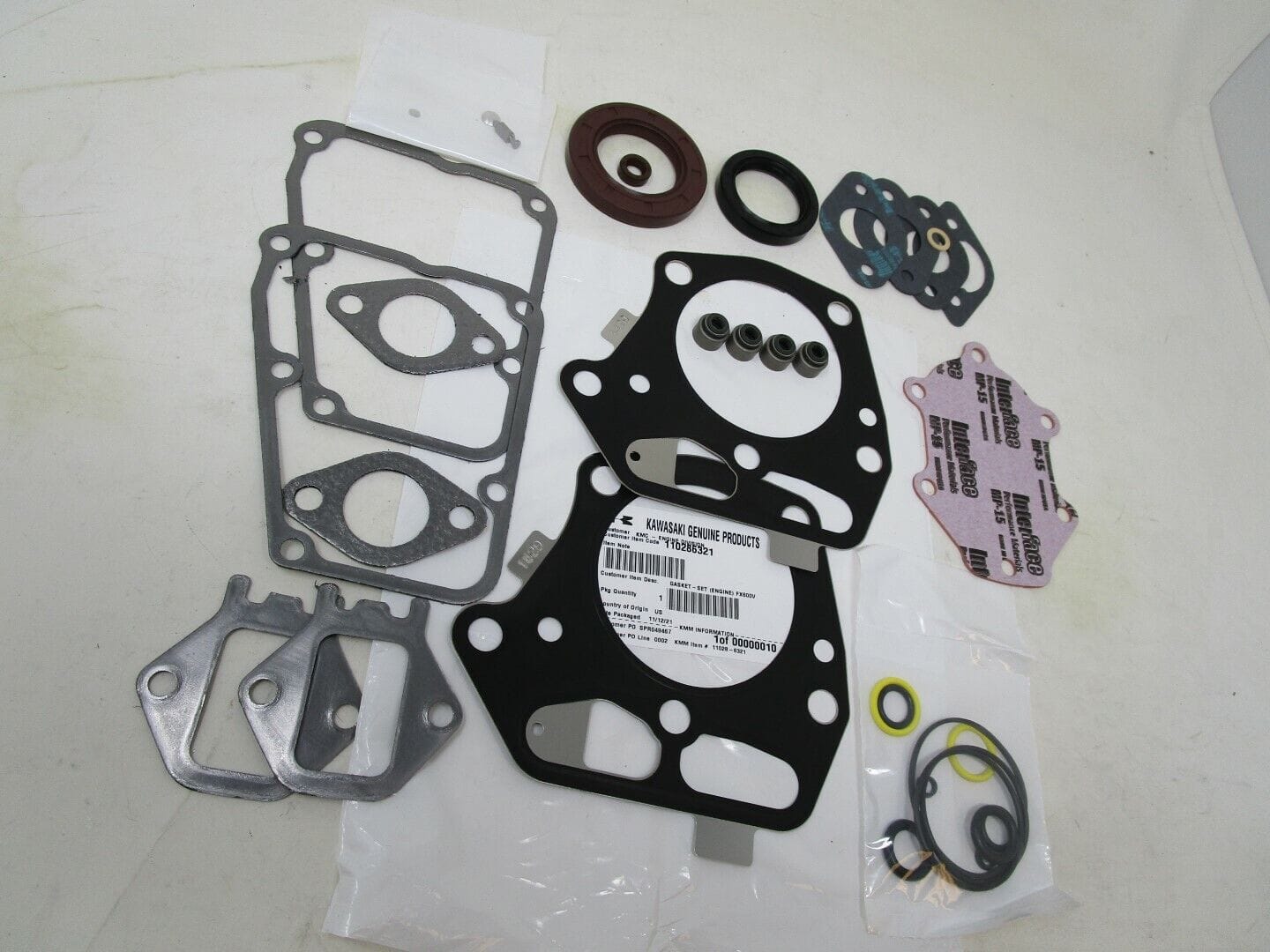

Genuine Kawasaki 11028-6321 & 11028-6316 Engine & Carburetor Rebuild Kits FR541V

Genuine Kawasaki 11028-6321 & 11028-6316 Engine & Carburetor Rebuild Kits FR541V



Superseded Engine Kit # 11028-6296

Superseded Carburetor Kit # 11028-6297

FR541V FR600V FS481V FS600V FX481V FX541V FX600V

2 / 11004-7027 Gasket (Cylinder head)

2 / 11060-7016 Gasket (Muffler)

2 / 11061-0877 Gasket (Manifold/Cylinder Head)

2 / 11061-1285 Gasket (Rocker Case)

1 / 11061-7094 Gasket (Breather)

1 / 670B2011 O-Ring (Crankcase)

2 / 92055-0892 O-Ring (Filler tube and Oil drain)

4 / 92049-7001 Seal-Oil (Valve stem IN & EX)

1 / 92049-7010 Seal-Oil (Crankshaft-Flywheel side)

1 / 92049-7019 Seal-Oil (Governor shaft)

1 / 92049-7028 Seal-Oil (Crankshaft-PTO side)

2 / 92055-7025 O-Ring (Air filter cover)

2 / 92055-7026 O-Ring (Manifold/Cylinder head)

Parts in 11028-6316 Carburetor Kit

1 / 11061-7009 Gasket (Carb. Float Bowl)

1 / 11061-7010 Gasket (Carb. Solenoid)

1 / 11061-7095 Gasket (IN pipe/Carburetor)

1 11061-7096 Gasket (Carb./Insulator/Manifold)

1 / 11061-7103 Gasket (Carb./Manifold)

1 / 92093-0593 Seal (Carb. Choke shaft)

1 / 92093-0594 Seal (Carb. Throttle shaft)

1 / 16030-7003 Valve (Carb. Float valve)

1 / 92066-2244 Welch Plug

1 / 92066-2204 Welch Plug
